Electrical tester

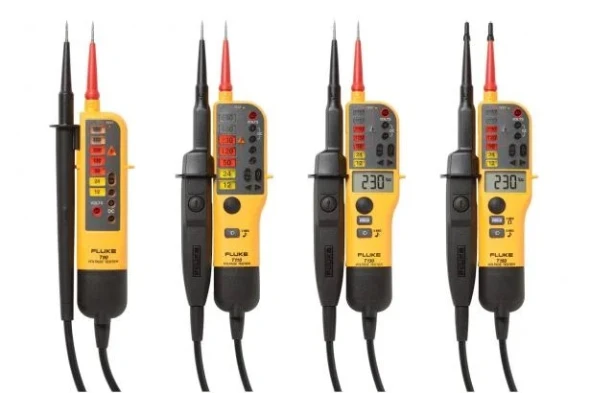

Fluke Two-pole Voltage and Continuity Testers
Fluke’s two-pole voltage and continuity testers are built to work the way you work. They give you the best combination of safety, ease-of-use and fast answers available anywhere.
• Designed according to IEC EN 61243-3:2014 to verify the absence of voltage – even with discharged batteries.
• CAT IV 600 V, CAT III 690 V safety rating
• With 4 ways to indicate the presence of voltage – LED indicator, LCD display, audible tone or tactile feedback, always know if hazardous voltage is present (digital display on T130, T150, vibration indicator on T110, T130, T150)
• Designed according to IEC EN 61243-3:2014 to verify the absence of voltage – even with discharged batteries.
• CAT IV 600 V, CAT III 690 V safety rating
• With 4 ways to indicate the presence of voltage – LED indicator, LCD display, audible tone or tactile feedback, always know if hazardous voltage is present (digital display on T130, T150, vibration indicator on T110, T130, T150)
Download
Produk Lainnya
• Non-contact voltage detection from 90 to 1000 V AC
• Innovative 'Battery Check' ensures battery is in good condition*
• Integrated clip design, optimized for pocket storage
• Innovative 'Battery Check' ensures battery is in good condition*
• Integrated clip design, optimized for pocket storage
The Fluke 1503 is a great choice for basic residential and commercial electrical insulation testing. This rugged, compact tool fits in the palm of your hand. The 1503 is the same form factor as the Fluke 1507 but with a few less features. You can count on it to handle the most common tests at a most affordable price. Additional features, like the remote probe, reduce the time needed to perform repetitive testing.
Other useful capabilities:
• Measures AC/DC voltage from 0.1 V to 600 V
• Includes auto-discharge of capacitive voltage for added user protection
• Provides lo-ohms earth-bond continuity (200 mA)
• Simplifies repetitive or hard-to-reach testing with the remote test probe
• Saves battery power with auto power off
• Presents results on a large, backlit display
• Features CAT IV 600 V overvoltage category rating
• Comes with remote probe, test leads, test probes, alligator clips, and one-year warranty
• Accepts optional Fluke TPAK magnetic hanging system to free your hands for other work
• Runs on four AA alkaline batteries (NEDA 15 A or IEC LR6) for at least 1000 insulation tests
Key Features
• A rugged, compact insulation resistance tester for residential and commercial electricians
• Performs insulation tests from 0.01 MΩ to 2000 MΩ
• Offers two insulation test voltages: 500 V and 1000 V
• Includes live circuit detection to prevent insulation test if voltage >30 V is detected
• Measures resistance from 0.01 Ω to 20.00 kΩ
Other useful capabilities:
• Measures AC/DC voltage from 0.1 V to 600 V
• Includes auto-discharge of capacitive voltage for added user protection
• Provides lo-ohms earth-bond continuity (200 mA)
• Simplifies repetitive or hard-to-reach testing with the remote test probe
• Saves battery power with auto power off
• Presents results on a large, backlit display
• Features CAT IV 600 V overvoltage category rating
• Comes with remote probe, test leads, test probes, alligator clips, and one-year warranty
• Accepts optional Fluke TPAK magnetic hanging system to free your hands for other work
• Runs on four AA alkaline batteries (NEDA 15 A or IEC LR6) for at least 1000 insulation tests
Key Features
• A rugged, compact insulation resistance tester for residential and commercial electricians
• Performs insulation tests from 0.01 MΩ to 2000 MΩ
• Offers two insulation test voltages: 500 V and 1000 V
• Includes live circuit detection to prevent insulation test if voltage >30 V is detected
• Measures resistance from 0.01 Ω to 20.00 kΩ
LVD2 volt light, offered by Fluke combines a non-contact AC voltage detector and LED flashlight into one easy to use pen-style design. It features dual sensitivity detection, turning blue from 1” to 5” (2.54 cm to 12.7 cm) from the source and red when at the source. The LVD2 is a CAT IV 600 V rated and is suitable for commercial and industrial applications.
Key Features
• Non-contact AC voltage tester and LED flashlight
• Detects from 90 to 600 V AC
• Features dual-sensitivity for two levels of detection
• Indicates proximity to AC voltage source with blue light
• Indicates you’re at the source with red light
• Ultra-bright white LED light with 100,000-hour bulb life
• Safety rated to CAT IV 600 V
• Operating temperature 0°C to 50°C
• AAA battery included
Key Features
• Non-contact AC voltage tester and LED flashlight
• Detects from 90 to 600 V AC
• Features dual-sensitivity for two levels of detection
• Indicates proximity to AC voltage source with blue light
• Indicates you’re at the source with red light
• Ultra-bright white LED light with 100,000-hour bulb life
• Safety rated to CAT IV 600 V
• Operating temperature 0°C to 50°C
• AAA battery included
The Fluke 1630-2 FC Stakeless Earth Ground Clamp is the kind of high-quality, rugged tool you expect from Fluke. Heavy-duty clamp jaw stays in alignment and in calibration even in every day, on-the-job industrial environments. Test the grounding components of equipment in hard-to-reach spaces, including areas that are indoors or fully paved and do not permit driving auxiliary test stakes. Stay on line—identify ground loop resistance without the need to disconnect then reconnect the earth electrode from the system.
Stakeless earth ground measurement testing
• You can also perform earth ground tests in places you’ve not considered before: inside buildings, power pylons, or anywhere you don’t have access to soil
• The Fluke 1625-2 earth ground tester can measure earth ground loop resistances using only clamps
• With this test method, two clamps are placed around the earth ground rod and each are connected to the tester
The Fluke 1625-2 improves your earth ground testing process with:
• Automatic Frequency Control (AFC) - identifies existing interference and chooses a measurement frequency to minimize its effect, providing more accurate earth ground value
• R* measurement - calculates earth ground impedance at 55 Hz to more accurately reflect the earth ground resistance that a fault-to earth ground would see
• Adjustable limits - for quicker testing
The Fluke 1625-2 gives you versatility in earth ground testing[b]
• 3- and 4-pole fall-of-potential, earth resistance loop testing
• 4-pole soil resistivity testing
• Selective earth ground rod testing using 1 clamp
• Stakeless earth ground rod testing using 2 clamps
[b]The Fluke 1625-2 offers you simpler, faster earth ground tests than ever before
• The 1625-2 offers internal memory storage up to 1500 records
• Accessible via USB port for rapid data transfer and viewing of results
• This earth ground tester also gives you world-class accessories that take the tedium out of earth ground testing
Additional tool features
• Heavy duty stakes can be hammered into dry, hard soil.
• And new color-coded wires make setup simple and help eliminate mistakes and speed up setup and tear down time as much as 50%
• IP56 rated for outdoor use
• Rugged carrying case
Key Features
The Fluke 1625-2 is a unique earth ground tester that can perform all four types of earth ground measurement:
• 3- and 4-Pole Fall-of-Potential (using stakes)
• 4-Pole Soil Resistivity testing (using stakes)
• Selective testing (using 1 clamp and stakes)
• Stakeless testing (using 2 clamps only) Adjustable limits - for quicker testing
• IP56 rated for outdoor use
• Rugged carrying case
Stakeless earth ground measurement testing
• You can also perform earth ground tests in places you’ve not considered before: inside buildings, power pylons, or anywhere you don’t have access to soil
• The Fluke 1625-2 earth ground tester can measure earth ground loop resistances using only clamps
• With this test method, two clamps are placed around the earth ground rod and each are connected to the tester
The Fluke 1625-2 improves your earth ground testing process with:
• Automatic Frequency Control (AFC) - identifies existing interference and chooses a measurement frequency to minimize its effect, providing more accurate earth ground value
• R* measurement - calculates earth ground impedance at 55 Hz to more accurately reflect the earth ground resistance that a fault-to earth ground would see
• Adjustable limits - for quicker testing
The Fluke 1625-2 gives you versatility in earth ground testing[b]
• 3- and 4-pole fall-of-potential, earth resistance loop testing
• 4-pole soil resistivity testing
• Selective earth ground rod testing using 1 clamp
• Stakeless earth ground rod testing using 2 clamps
[b]The Fluke 1625-2 offers you simpler, faster earth ground tests than ever before
• The 1625-2 offers internal memory storage up to 1500 records
• Accessible via USB port for rapid data transfer and viewing of results
• This earth ground tester also gives you world-class accessories that take the tedium out of earth ground testing
Additional tool features
• Heavy duty stakes can be hammered into dry, hard soil.
• And new color-coded wires make setup simple and help eliminate mistakes and speed up setup and tear down time as much as 50%
• IP56 rated for outdoor use
• Rugged carrying case
Key Features
The Fluke 1625-2 is a unique earth ground tester that can perform all four types of earth ground measurement:
• 3- and 4-Pole Fall-of-Potential (using stakes)
• 4-Pole Soil Resistivity testing (using stakes)
• Selective testing (using 1 clamp and stakes)
• Stakeless testing (using 2 clamps only) Adjustable limits - for quicker testing
• IP56 rated for outdoor use
• Rugged carrying case
