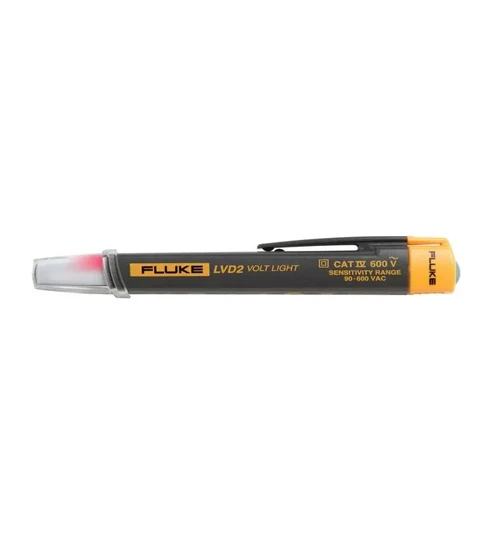

Fluke LVD2 Non-Contact Voltage Tester
LVD2 volt light, offered by Fluke combines a non-contact AC voltage detector and LED flashlight into one easy to use pen-style design. It features dual sensitivity detection, turning blue from 1” to 5” (2.54 cm to 12.7 cm) from the source and red when at the source. The LVD2 is a CAT IV 600 V rated and is suitable for commercial and industrial applications.
Key Features
• Non-contact AC voltage tester and LED flashlight
• Detects from 90 to 600 V AC
• Features dual-sensitivity for two levels of detection
• Indicates proximity to AC voltage source with blue light
• Indicates you’re at the source with red light
• Ultra-bright white LED light with 100,000-hour bulb life
• Safety rated to CAT IV 600 V
• Operating temperature 0°C to 50°C
• AAA battery included
Key Features
• Non-contact AC voltage tester and LED flashlight
• Detects from 90 to 600 V AC
• Features dual-sensitivity for two levels of detection
• Indicates proximity to AC voltage source with blue light
• Indicates you’re at the source with red light
• Ultra-bright white LED light with 100,000-hour bulb life
• Safety rated to CAT IV 600 V
• Operating temperature 0°C to 50°C
• AAA battery included
Download
Produk Lainnya
Test the safety and performance of a type 1, level 1 or level 2 electric vehicle ac charging stations (EVSEs) with the Fluke FEV100. This test adapter simulates the presence of an electrical vehicle, allowing you to conduct tests in combination with appropriate test instruments such as a digital multimeter or oscilloscope. Use the FEV100 to verify an EVSE is working properly after install and during periodic maintenance, or troubleshoot an EVSE if it is not delivering the appropriate charge.
Electrical safety
EVSE charging cables may become damaged over the course of use, increasing electric shock risks to users. Stay protected from and check risk of electric shock with the GFCI trip test. This function verifies the breaker of the EVSE is connected by detecting ground faults. Additionally, the PE grounding protection pre-test verifies that there is no presence of dangerous voltage at the ground terminal.
Simplicity and convenience
Perform a variety of tests including ground fault checks, insulation of wires, measuring voltage and duty cycle to see max current available for charging all in one adapter that safely integrates with the Fluke portfolio of test and measurement tools. There is no need to bring an electric vehicle onsite for EVSE troubleshooting: the adapter acts as an electric vehicle when connected to an EVSE for easy performance and maintenance testing.
Recommended tools for use with the FEV100
Key features
• Check protective earth for correct wiring and functioning with the PE pre-test feature.
• Perform GFCI troubleshooting of EVSE and verify operation within safety standards.
• Test charging states of EVSE with CP state simulation.
• Verify charging voltage and maximum available current using a multimeter.
• SAE J1772 compliant to North American standards.
Electrical safety
EVSE charging cables may become damaged over the course of use, increasing electric shock risks to users. Stay protected from and check risk of electric shock with the GFCI trip test. This function verifies the breaker of the EVSE is connected by detecting ground faults. Additionally, the PE grounding protection pre-test verifies that there is no presence of dangerous voltage at the ground terminal.
Simplicity and convenience
Perform a variety of tests including ground fault checks, insulation of wires, measuring voltage and duty cycle to see max current available for charging all in one adapter that safely integrates with the Fluke portfolio of test and measurement tools. There is no need to bring an electric vehicle onsite for EVSE troubleshooting: the adapter acts as an electric vehicle when connected to an EVSE for easy performance and maintenance testing.
Recommended tools for use with the FEV100
Key features
• Check protective earth for correct wiring and functioning with the PE pre-test feature.
• Perform GFCI troubleshooting of EVSE and verify operation within safety standards.
• Test charging states of EVSE with CP state simulation.
• Verify charging voltage and maximum available current using a multimeter.
• SAE J1772 compliant to North American standards.
The Fluke 1623-2 GEO Earth Ground Tester offers data storage and download capabilities via USB port. World class accessories will simplify and speed up testing time.
Fluke 1623-2 GEO Earth Ground Tester summary
• 3- and 4-pole Fall-of-Potential, earth resistance loop testing
• 4-pole Soil Resistivity testing
• Selective earth ground rod testing using 1 clamp
• Stakeless earth ground rod testing using 2 clamps
• IP56 rated for outdoor use
• Rugged carrying case
• USB data storage and transfer
Fitur utama
Stakeless Testing
The Fluke 1623-2 earth ground tester is able to measure earth ground loop resistances using only clamps. With this test method, two clamps are placed around the earth ground rod and each are connected to the tester. No earth ground stakes are used at all. A known, fixed voltage is induced by one clamp and the current is measured using the second clamp. Then the tester automatically determines the resistance of the earth ground rod. This test method only works if a bonded earth ground system exists for the building or structure under test, but most are. If there is only one path to ground, like at many residential applications, the Stakeless method will not provide an acceptable value and the Fall-of-Potential test method must be used.
With Stakeless testing, the earth ground rod does not need to be disconnected - leaving the bonded earth ground system intact during test. Gone are the days of spending time placing and connecting stakes for each earth ground rod on your system - a major time saver. You can also perform earth ground tests in places you’ve not considered before: inside buildings, power pylons, or anywhere you don’t have access to soil.
The Most Complete Tester
The Fluke 1623-2 is a unique earth ground tester that can perform all four types of earth ground measurement.
• 3- and 4-Pole Fall-of-Potential (using stakes)
• 4-Pole Soil Resistivity Testing (using stakes)
• Selective Testing (using 1 clamp and stakes)
• Stakeless Testing (using 2 clamps only)
Fluke 1623-2 GEO Earth Ground Tester summary
• 3- and 4-pole Fall-of-Potential, earth resistance loop testing
• 4-pole Soil Resistivity testing
• Selective earth ground rod testing using 1 clamp
• Stakeless earth ground rod testing using 2 clamps
• IP56 rated for outdoor use
• Rugged carrying case
• USB data storage and transfer
Fitur utama
Stakeless Testing
The Fluke 1623-2 earth ground tester is able to measure earth ground loop resistances using only clamps. With this test method, two clamps are placed around the earth ground rod and each are connected to the tester. No earth ground stakes are used at all. A known, fixed voltage is induced by one clamp and the current is measured using the second clamp. Then the tester automatically determines the resistance of the earth ground rod. This test method only works if a bonded earth ground system exists for the building or structure under test, but most are. If there is only one path to ground, like at many residential applications, the Stakeless method will not provide an acceptable value and the Fall-of-Potential test method must be used.
With Stakeless testing, the earth ground rod does not need to be disconnected - leaving the bonded earth ground system intact during test. Gone are the days of spending time placing and connecting stakes for each earth ground rod on your system - a major time saver. You can also perform earth ground tests in places you’ve not considered before: inside buildings, power pylons, or anywhere you don’t have access to soil.
The Most Complete Tester
The Fluke 1623-2 is a unique earth ground tester that can perform all four types of earth ground measurement.
• 3- and 4-Pole Fall-of-Potential (using stakes)
• 4-Pole Soil Resistivity Testing (using stakes)
• Selective Testing (using 1 clamp and stakes)
• Stakeless Testing (using 2 clamps only)
The Fluke 1507 is a versatile, compact, handheld insulation tester for advanced industrial and electrical insulation testing. Its multiple test voltages make it the ideal tool for many troubleshooting, commissioning, and preventative maintenance applications.
Take advantage of the 1507 full feature set to easily and quickly perform advanced insulation resistance testing. Its handy size and light weight make it easy to pack and use. Additional features, like the remote probe, save both time and money especially when performing repetitive tests. And its reasonable price and rugged reliability make it an excellent value.
Other useful capabilities:
• Performs insulation tests from 0.01 MΩ to 10 GΩ
• Includes live circuit detection to prevent insulation test if voltage >30 V is detected
• Includes auto-discharge of capacitive voltage for added user protection
• Measures AC/DC voltage from 0.1 V to 600 V and resistance from 0.01 Ω to 20.00 kΩ
• Provides lo-ohms earth-bond continuity (200 mA)
• Simplifies repetitive or hard-to-reach testing with the remote test probe
• Saves battery power with auto power off
• Presents results on a large, backlit display
• Features CAT IV 600 V overvoltage category rating
• Comes with remote probe, test leads, test probes, alligator clips and one-year warranty
• Accepts optional Fluke TPAK magnetic hanging system to free your hands for other work
• Runs on four AA alkaline batteries (NEDA 15 A or IEC LR6) for at least 1000 insulation tests
Key Features
• Rugged, compact advanced insulation resistance tester for electrical contractors and industrial and commercial electricians
• Automatically calculates Polarization Index and Dielectric Absorption Ratio
• Makes repetitive tests simple and easy with a Compare (Pass/Fail) function
• Offers multiple insulation test voltages: 50 V, 100 V, 250 V, 500 V, and 1000 V
Take advantage of the 1507 full feature set to easily and quickly perform advanced insulation resistance testing. Its handy size and light weight make it easy to pack and use. Additional features, like the remote probe, save both time and money especially when performing repetitive tests. And its reasonable price and rugged reliability make it an excellent value.
Other useful capabilities:
• Performs insulation tests from 0.01 MΩ to 10 GΩ
• Includes live circuit detection to prevent insulation test if voltage >30 V is detected
• Includes auto-discharge of capacitive voltage for added user protection
• Measures AC/DC voltage from 0.1 V to 600 V and resistance from 0.01 Ω to 20.00 kΩ
• Provides lo-ohms earth-bond continuity (200 mA)
• Simplifies repetitive or hard-to-reach testing with the remote test probe
• Saves battery power with auto power off
• Presents results on a large, backlit display
• Features CAT IV 600 V overvoltage category rating
• Comes with remote probe, test leads, test probes, alligator clips and one-year warranty
• Accepts optional Fluke TPAK magnetic hanging system to free your hands for other work
• Runs on four AA alkaline batteries (NEDA 15 A or IEC LR6) for at least 1000 insulation tests
Key Features
• Rugged, compact advanced insulation resistance tester for electrical contractors and industrial and commercial electricians
• Automatically calculates Polarization Index and Dielectric Absorption Ratio
• Makes repetitive tests simple and easy with a Compare (Pass/Fail) function
• Offers multiple insulation test voltages: 50 V, 100 V, 250 V, 500 V, and 1000 V
The unique Fluke 9062 provides rotary field and motor rotation indication with the benefits of contact-less detection. Purpose made for commercial and industrial environments, the Fluke 9062 provides rapid indication of 3 phase rotation using test leads supplied or can be used to determine motor rotation on synchronous and asynchronous 3 phase motors. The contact-less detection is ideal for use on motors where the shaft is not visible. The included test probes have a variable clamping range for safe contact, also in industrial sockets.
Key Features
• 3 phase indication
• Indication of phase rotation
• Indication of motor rotation direction
• Contact free determination of the rotation direction of running motors
Key Features
• 3 phase indication
• Indication of phase rotation
• Indication of motor rotation direction
• Contact free determination of the rotation direction of running motors
