Electrical tester

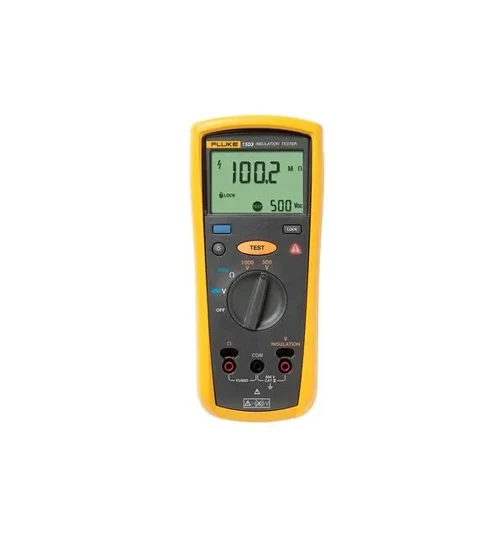

Fluke 1503 Insulation Resistance Meter
The Fluke 1503 is a great choice for basic residential and commercial electrical insulation testing. This rugged, compact tool fits in the palm of your hand. The 1503 is the same form factor as the Fluke 1507 but with a few less features. You can count on it to handle the most common tests at a most affordable price. Additional features, like the remote probe, reduce the time needed to perform repetitive testing.
Other useful capabilities:
• Measures AC/DC voltage from 0.1 V to 600 V
• Includes auto-discharge of capacitive voltage for added user protection
• Provides lo-ohms earth-bond continuity (200 mA)
• Simplifies repetitive or hard-to-reach testing with the remote test probe
• Saves battery power with auto power off
• Presents results on a large, backlit display
• Features CAT IV 600 V overvoltage category rating
• Comes with remote probe, test leads, test probes, alligator clips, and one-year warranty
• Accepts optional Fluke TPAK magnetic hanging system to free your hands for other work
• Runs on four AA alkaline batteries (NEDA 15 A or IEC LR6) for at least 1000 insulation tests
Key Features
• A rugged, compact insulation resistance tester for residential and commercial electricians
• Performs insulation tests from 0.01 MΩ to 2000 MΩ
• Offers two insulation test voltages: 500 V and 1000 V
• Includes live circuit detection to prevent insulation test if voltage >30 V is detected
• Measures resistance from 0.01 Ω to 20.00 kΩ
Other useful capabilities:
• Measures AC/DC voltage from 0.1 V to 600 V
• Includes auto-discharge of capacitive voltage for added user protection
• Provides lo-ohms earth-bond continuity (200 mA)
• Simplifies repetitive or hard-to-reach testing with the remote test probe
• Saves battery power with auto power off
• Presents results on a large, backlit display
• Features CAT IV 600 V overvoltage category rating
• Comes with remote probe, test leads, test probes, alligator clips, and one-year warranty
• Accepts optional Fluke TPAK magnetic hanging system to free your hands for other work
• Runs on four AA alkaline batteries (NEDA 15 A or IEC LR6) for at least 1000 insulation tests
Key Features
• A rugged, compact insulation resistance tester for residential and commercial electricians
• Performs insulation tests from 0.01 MΩ to 2000 MΩ
• Offers two insulation test voltages: 500 V and 1000 V
• Includes live circuit detection to prevent insulation test if voltage >30 V is detected
• Measures resistance from 0.01 Ω to 20.00 kΩ
Download
Produk Lainnya
• OpenJaw™ design: measure current without breaking the circuit
• Tester automatically selects AC or DC voltage, up to 1000 V
• Work in tight spaces with detachable Slim Reach probe tips
• Tester automatically selects AC or DC voltage, up to 1000 V
• Work in tight spaces with detachable Slim Reach probe tips
LVD2 volt light, offered by Fluke combines a non-contact AC voltage detector and LED flashlight into one easy to use pen-style design. It features dual sensitivity detection, turning blue from 1” to 5” (2.54 cm to 12.7 cm) from the source and red when at the source. The LVD2 is a CAT IV 600 V rated and is suitable for commercial and industrial applications.
Key Features
• Non-contact AC voltage tester and LED flashlight
• Detects from 90 to 600 V AC
• Features dual-sensitivity for two levels of detection
• Indicates proximity to AC voltage source with blue light
• Indicates you’re at the source with red light
• Ultra-bright white LED light with 100,000-hour bulb life
• Safety rated to CAT IV 600 V
• Operating temperature 0°C to 50°C
• AAA battery included
Key Features
• Non-contact AC voltage tester and LED flashlight
• Detects from 90 to 600 V AC
• Features dual-sensitivity for two levels of detection
• Indicates proximity to AC voltage source with blue light
• Indicates you’re at the source with red light
• Ultra-bright white LED light with 100,000-hour bulb life
• Safety rated to CAT IV 600 V
• Operating temperature 0°C to 50°C
• AAA battery included
• Measure current up to 100 A without breaking the circuit
• Meter automatically selects AC or DC voltage, up to 600 V
• Resistance measurements up to 1000 Ω plus continuity test
• Work in tight spaces with detachable SlimReach™ probe tips
• Meter automatically selects AC or DC voltage, up to 600 V
• Resistance measurements up to 1000 Ω plus continuity test
• Work in tight spaces with detachable SlimReach™ probe tips
The Fluke 1507 is a versatile, compact, handheld insulation tester for advanced industrial and electrical insulation testing. Its multiple test voltages make it the ideal tool for many troubleshooting, commissioning, and preventative maintenance applications.
Take advantage of the 1507 full feature set to easily and quickly perform advanced insulation resistance testing. Its handy size and light weight make it easy to pack and use. Additional features, like the remote probe, save both time and money especially when performing repetitive tests. And its reasonable price and rugged reliability make it an excellent value.
Other useful capabilities:
• Performs insulation tests from 0.01 MΩ to 10 GΩ
• Includes live circuit detection to prevent insulation test if voltage >30 V is detected
• Includes auto-discharge of capacitive voltage for added user protection
• Measures AC/DC voltage from 0.1 V to 600 V and resistance from 0.01 Ω to 20.00 kΩ
• Provides lo-ohms earth-bond continuity (200 mA)
• Simplifies repetitive or hard-to-reach testing with the remote test probe
• Saves battery power with auto power off
• Presents results on a large, backlit display
• Features CAT IV 600 V overvoltage category rating
• Comes with remote probe, test leads, test probes, alligator clips and one-year warranty
• Accepts optional Fluke TPAK magnetic hanging system to free your hands for other work
• Runs on four AA alkaline batteries (NEDA 15 A or IEC LR6) for at least 1000 insulation tests
Key Features
• Rugged, compact advanced insulation resistance tester for electrical contractors and industrial and commercial electricians
• Automatically calculates Polarization Index and Dielectric Absorption Ratio
• Makes repetitive tests simple and easy with a Compare (Pass/Fail) function
• Offers multiple insulation test voltages: 50 V, 100 V, 250 V, 500 V, and 1000 V
Take advantage of the 1507 full feature set to easily and quickly perform advanced insulation resistance testing. Its handy size and light weight make it easy to pack and use. Additional features, like the remote probe, save both time and money especially when performing repetitive tests. And its reasonable price and rugged reliability make it an excellent value.
Other useful capabilities:
• Performs insulation tests from 0.01 MΩ to 10 GΩ
• Includes live circuit detection to prevent insulation test if voltage >30 V is detected
• Includes auto-discharge of capacitive voltage for added user protection
• Measures AC/DC voltage from 0.1 V to 600 V and resistance from 0.01 Ω to 20.00 kΩ
• Provides lo-ohms earth-bond continuity (200 mA)
• Simplifies repetitive or hard-to-reach testing with the remote test probe
• Saves battery power with auto power off
• Presents results on a large, backlit display
• Features CAT IV 600 V overvoltage category rating
• Comes with remote probe, test leads, test probes, alligator clips and one-year warranty
• Accepts optional Fluke TPAK magnetic hanging system to free your hands for other work
• Runs on four AA alkaline batteries (NEDA 15 A or IEC LR6) for at least 1000 insulation tests
Key Features
• Rugged, compact advanced insulation resistance tester for electrical contractors and industrial and commercial electricians
• Automatically calculates Polarization Index and Dielectric Absorption Ratio
• Makes repetitive tests simple and easy with a Compare (Pass/Fail) function
• Offers multiple insulation test voltages: 50 V, 100 V, 250 V, 500 V, and 1000 V
