Fluke 700 PMP Pressure Pump
Product review : Fluke 700 PMP Pressure Pump

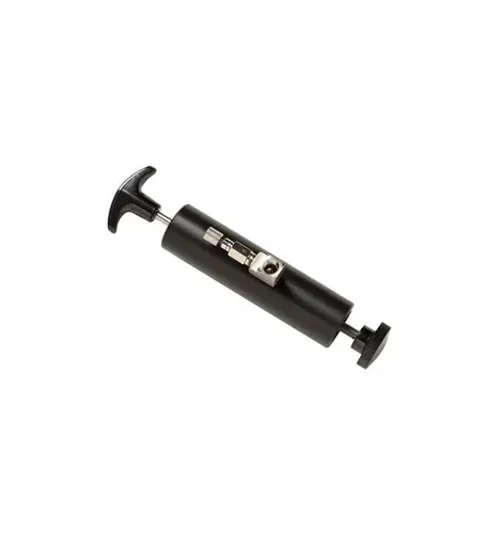

Description: The Fluke 700PMP is a hand-operated pressure pump to provide pressures up to 150 psi/1000 kPa. Output fitting is 1/8 FNPT.
Application: Linear stroke of 4 cm. Multi-turn vernier for fine adjustment of pressure.
Description: The Fluke 700PMP is a hand-operated pressure pump to provide pressures up to 150 psi/1000 kPa. Output fitting is 1/8 FNPT.
Application: Linear stroke of 4 cm. Multi-turn vernier for fine adjustment of pressure.
Download
