Calibrator
Fluke 730LTP/600K

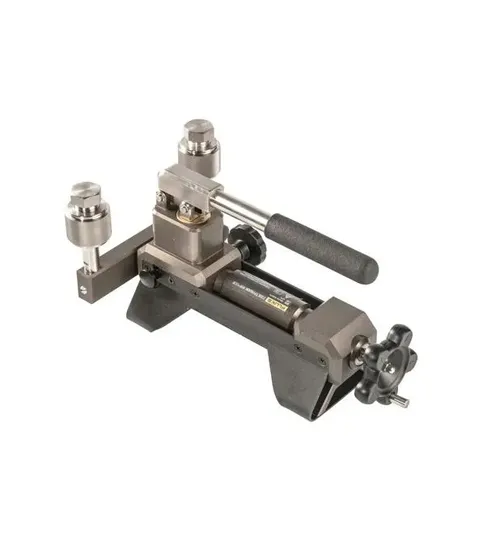

The New Fluke 730 series portable pumps feature fast pressure generation, stable pressure and easy-to-use. These pumps can provide stable, reliable pressure during calibration. The unique design of these pumps enables them to solve the common problems of pressure pump, such as blocking, leakage and laborious operation. They are your right-hand assistant in the process of manual pressure calibration.

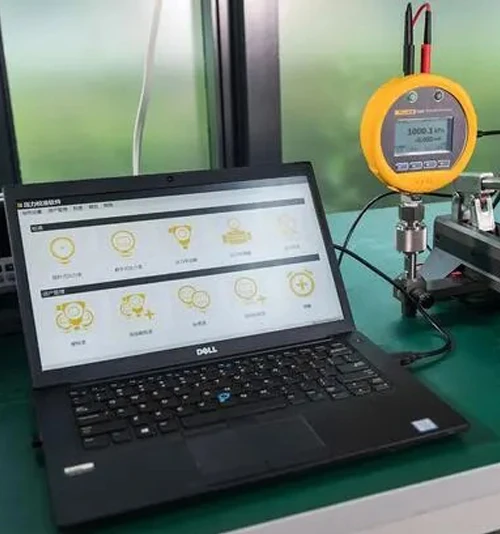

In conjunction with Fluke 730G Smart Digital Pressure Calibrator with internal HART communication, these test pumps enable high-efficiency and high-accuracy measurement and calibration of pressure gauges, pressure switches, pressure transmitters, which make them ideal for metrology institutes and enterprises to establish pressure laboratories.
Key features
• Pressure range -95kPa to 600kPa
• Pressure is generated by the combination of the pressure rod and screw for faster and smoother pressure increase and decrease
• Safely switch between pressure and vacuum
• Two-year warranty. No worry to use.
• Special surface treatment, scratch and corrosion resistance.
• M20×1.5 female thread quick connection fitting
In conjunction with Fluke 730G Smart Digital Pressure Calibrator with internal HART communication, these test pumps enable high-efficiency and high-accuracy measurement and calibration of pressure gauges, pressure switches, pressure transmitters, which make them ideal for metrology institutes and enterprises to establish pressure laboratories.
Key features
• Pressure range -95kPa to 600kPa
• Pressure is generated by the combination of the pressure rod and screw for faster and smoother pressure increase and decrease
• Safely switch between pressure and vacuum
• Two-year warranty. No worry to use.
• Special surface treatment, scratch and corrosion resistance.
• M20×1.5 female thread quick connection fitting
Download
