Calibrator

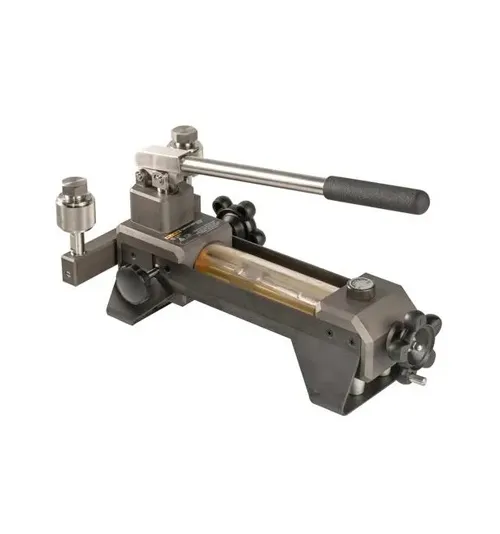

Fluke 730HTP/70M
The New Fluke 730 series portable pumps feature fast pressure generation,stable pressure and easy-to-use. These pumps can provide stable,reliable pressure during calibration. The unique design of these pumps enables them to solve the common problems of pressure pump, such as blocking, leakage and laborious operation. They are your right-hand assistant in the process of manual pressure calibration.

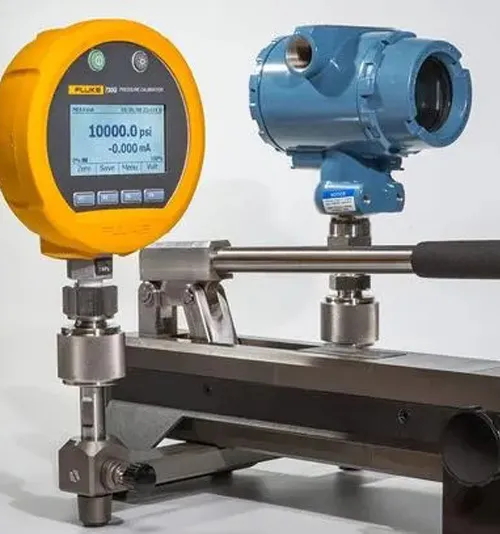

In conjunction with Fluke 730G Smart Digital Pressure Calibrator with internal HART communication, these test pumps enable high-efficiency and high-accuracy measurement and calibration of pressure gauges, pressure switches, pressure transmitters, which make them ideal for metrology institutes and enterprises to establish pressure laboratories.
Key features
• Pressure range 0 kPa to 70 Mpa
• The pressure generation by the pressure rod can calibrate pressure meters with a large cavity;
• fine adjustment by the screw has the high minimum controllable adjustment granularity
• Two-year warranty. No worry to use.
• Special surface treatment, scratch and corrosion resistance.
• M20×1.5 female thread quick connection fitting.
In conjunction with Fluke 730G Smart Digital Pressure Calibrator with internal HART communication, these test pumps enable high-efficiency and high-accuracy measurement and calibration of pressure gauges, pressure switches, pressure transmitters, which make them ideal for metrology institutes and enterprises to establish pressure laboratories.
Key features
• Pressure range 0 kPa to 70 Mpa
• The pressure generation by the pressure rod can calibrate pressure meters with a large cavity;
• fine adjustment by the screw has the high minimum controllable adjustment granularity
• Two-year warranty. No worry to use.
• Special surface treatment, scratch and corrosion resistance.
• M20×1.5 female thread quick connection fitting.
Download
Produk Lainnya
Product review : Fluke 700 PMP Pressure Pump
Description: The Fluke 700PMP is a hand-operated pressure pump to provide pressures up to 150 psi/1000 kPa. Output fitting is 1/8 FNPT.
Application: Linear stroke of 4 cm. Multi-turn vernier for fine adjustment of pressure.
Description: The Fluke 700PMP is a hand-operated pressure pump to provide pressures up to 150 psi/1000 kPa. Output fitting is 1/8 FNPT.
Application: Linear stroke of 4 cm. Multi-turn vernier for fine adjustment of pressure.
Key features
Ultra-cool dry-block calibrator with best-in-class stability
The Fluke 9190A Ultra-Cool Field Metrology Well is the most accurate and stable, cold temperature dry-block on the market. It’s ideal for applications that demand strict quality control and regulatory process compliance. These applications include on-location validation and calibration of RTDs, thermocouples, thermometers, and sensors used with process control equipment such as medical freezers, laboratory refrigerators, cold rooms, blood banks, sterilizers (autoclaves), and freeze dryers.
Wide temperature range
–95 °C to 140 °C
Excellent accuracy
Accuracy using built-in referencethermometer readout: ±0.05 °C full range
Display accuracy: ±0.2 °C full range
Best-in-class stability
±0.015 °C full range
Fast cooling time
23 °C to –90 °C: 80 minutes
23 °C to –95 °C: 90 minutes
140 °C to 23 °C: 60 minutes
Portability
Weighs only 16 kg (35 lbs)
Built-in front and back handlesfor easy two-handed carry
Best measurement practices
Conforms with EURAMET cg-13 guidance on measurement practices for temperature calibrators
Ultra-cool dry-block calibrator with best-in-class stability
The Fluke 9190A Ultra-Cool Field Metrology Well is the most accurate and stable, cold temperature dry-block on the market. It’s ideal for applications that demand strict quality control and regulatory process compliance. These applications include on-location validation and calibration of RTDs, thermocouples, thermometers, and sensors used with process control equipment such as medical freezers, laboratory refrigerators, cold rooms, blood banks, sterilizers (autoclaves), and freeze dryers.
Wide temperature range
–95 °C to 140 °C
Excellent accuracy
Accuracy using built-in referencethermometer readout: ±0.05 °C full range
Display accuracy: ±0.2 °C full range
Best-in-class stability
±0.015 °C full range
Fast cooling time
23 °C to –90 °C: 80 minutes
23 °C to –95 °C: 90 minutes
140 °C to 23 °C: 60 minutes
Portability
Weighs only 16 kg (35 lbs)
Built-in front and back handlesfor easy two-handed carry
Best measurement practices
Conforms with EURAMET cg-13 guidance on measurement practices for temperature calibrators
This pneumatic comparison test pump is designed for testing pressure measuring instruments against master test instruments. This cost effective instrument provides precise control for important calibration requirements and include many features found in our popular line of pneumatic deadweight testers.
Key features
• Dual pressure/vacuum capability
• Bench mount design
• Built-in handpump as pressure/vacuum source
• High quality needle valve for fine control
• Test port adapters that require no PTFE tape or wrenches
Key features
• Dual pressure/vacuum capability
• Bench mount design
• Built-in handpump as pressure/vacuum source
• High quality needle valve for fine control
• Test port adapters that require no PTFE tape or wrenches
The New Fluke 730 series portable pumps feature fast pressure generation,stable pressure and easy-to-use. These pumps can provide stable,reliable pressure during calibration. The unique design of these pumps enables them to solve the common problems of pressure pump, such as blocking, leakage and laborious operation. They are your right-hand assistant in the process of manual pressure calibration.
In conjunction with Fluke 730G Smart Digital Pressure Calibrator with internal HART communication, these test pumps enable high-efficiency and high-accuracy measurement and calibration of pressure gauges,pressure switches, pressure transmitters, which make them ideal for metrology institutes and enterprises to establish pressure laboratories.
Key features
• Pressure range -40 kPa to 40 kPa
• Ultra-precision fine adjustment, the minimum controllable adjustment granularity is high
• Special insulation, greatly reducing the influence of external temperature
• Two-year warranty. No worry to use.
• Special surface treatment, scratch and corrosion resistance.
• M20×1.5 female thread quick connection fitting.
In conjunction with Fluke 730G Smart Digital Pressure Calibrator with internal HART communication, these test pumps enable high-efficiency and high-accuracy measurement and calibration of pressure gauges,pressure switches, pressure transmitters, which make them ideal for metrology institutes and enterprises to establish pressure laboratories.
Key features
• Pressure range -40 kPa to 40 kPa
• Ultra-precision fine adjustment, the minimum controllable adjustment granularity is high
• Special insulation, greatly reducing the influence of external temperature
• Two-year warranty. No worry to use.
• Special surface treatment, scratch and corrosion resistance.
• M20×1.5 female thread quick connection fitting.
