Electrical tester
Fluke T6-1000 PRO Electrical Tester
• Save time by seeing voltage and current measurements at the same time

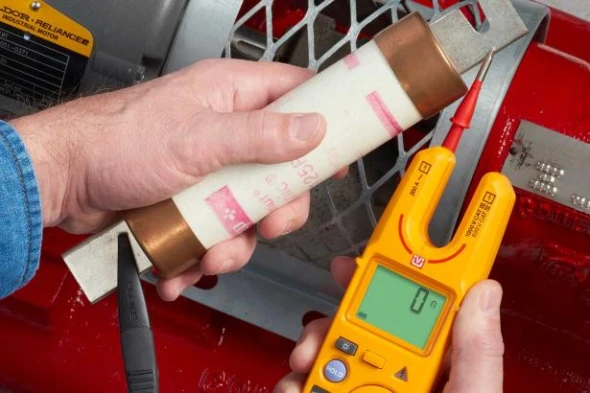

• Visual Continuity™ – the screen automatically turns green for continuity, perfect when it’s too loud to hear the beeper
• FieldSense™ technology for ac voltage, current and frequency, all without making electrical contact to live voltage
• Visual Continuity™ – the screen automatically turns green for continuity, perfect when it’s too loud to hear the beeper
• FieldSense™ technology for ac voltage, current and frequency, all without making electrical contact to live voltage
Download
Produk Lainnya
LVD2 volt light, offered by Fluke combines a non-contact AC voltage detector and LED flashlight into one easy to use pen-style design. It features dual sensitivity detection, turning blue from 1” to 5” (2.54 cm to 12.7 cm) from the source and red when at the source. The LVD2 is a CAT IV 600 V rated and is suitable for commercial and industrial applications.
Key Features
• Non-contact AC voltage tester and LED flashlight
• Detects from 90 to 600 V AC
• Features dual-sensitivity for two levels of detection
• Indicates proximity to AC voltage source with blue light
• Indicates you’re at the source with red light
• Ultra-bright white LED light with 100,000-hour bulb life
• Safety rated to CAT IV 600 V
• Operating temperature 0°C to 50°C
• AAA battery included
Key Features
• Non-contact AC voltage tester and LED flashlight
• Detects from 90 to 600 V AC
• Features dual-sensitivity for two levels of detection
• Indicates proximity to AC voltage source with blue light
• Indicates you’re at the source with red light
• Ultra-bright white LED light with 100,000-hour bulb life
• Safety rated to CAT IV 600 V
• Operating temperature 0°C to 50°C
• AAA battery included
The Fluke 1503 is a great choice for basic residential and commercial electrical insulation testing. This rugged, compact tool fits in the palm of your hand. The 1503 is the same form factor as the Fluke 1507 but with a few less features. You can count on it to handle the most common tests at a most affordable price. Additional features, like the remote probe, reduce the time needed to perform repetitive testing.
Other useful capabilities:
• Measures AC/DC voltage from 0.1 V to 600 V
• Includes auto-discharge of capacitive voltage for added user protection
• Provides lo-ohms earth-bond continuity (200 mA)
• Simplifies repetitive or hard-to-reach testing with the remote test probe
• Saves battery power with auto power off
• Presents results on a large, backlit display
• Features CAT IV 600 V overvoltage category rating
• Comes with remote probe, test leads, test probes, alligator clips, and one-year warranty
• Accepts optional Fluke TPAK magnetic hanging system to free your hands for other work
• Runs on four AA alkaline batteries (NEDA 15 A or IEC LR6) for at least 1000 insulation tests
Key Features
• A rugged, compact insulation resistance tester for residential and commercial electricians
• Performs insulation tests from 0.01 MΩ to 2000 MΩ
• Offers two insulation test voltages: 500 V and 1000 V
• Includes live circuit detection to prevent insulation test if voltage >30 V is detected
• Measures resistance from 0.01 Ω to 20.00 kΩ
Other useful capabilities:
• Measures AC/DC voltage from 0.1 V to 600 V
• Includes auto-discharge of capacitive voltage for added user protection
• Provides lo-ohms earth-bond continuity (200 mA)
• Simplifies repetitive or hard-to-reach testing with the remote test probe
• Saves battery power with auto power off
• Presents results on a large, backlit display
• Features CAT IV 600 V overvoltage category rating
• Comes with remote probe, test leads, test probes, alligator clips, and one-year warranty
• Accepts optional Fluke TPAK magnetic hanging system to free your hands for other work
• Runs on four AA alkaline batteries (NEDA 15 A or IEC LR6) for at least 1000 insulation tests
Key Features
• A rugged, compact insulation resistance tester for residential and commercial electricians
• Performs insulation tests from 0.01 MΩ to 2000 MΩ
• Offers two insulation test voltages: 500 V and 1000 V
• Includes live circuit detection to prevent insulation test if voltage >30 V is detected
• Measures resistance from 0.01 Ω to 20.00 kΩ
Test the safety and performance of a type 1, level 1 or level 2 electric vehicle ac charging stations (EVSEs) with the Fluke FEV100. This test adapter simulates the presence of an electrical vehicle, allowing you to conduct tests in combination with appropriate test instruments such as a digital multimeter or oscilloscope. Use the FEV100 to verify an EVSE is working properly after install and during periodic maintenance, or troubleshoot an EVSE if it is not delivering the appropriate charge.
Electrical safety
EVSE charging cables may become damaged over the course of use, increasing electric shock risks to users. Stay protected from and check risk of electric shock with the GFCI trip test. This function verifies the breaker of the EVSE is connected by detecting ground faults. Additionally, the PE grounding protection pre-test verifies that there is no presence of dangerous voltage at the ground terminal.
Simplicity and convenience
Perform a variety of tests including ground fault checks, insulation of wires, measuring voltage and duty cycle to see max current available for charging all in one adapter that safely integrates with the Fluke portfolio of test and measurement tools. There is no need to bring an electric vehicle onsite for EVSE troubleshooting: the adapter acts as an electric vehicle when connected to an EVSE for easy performance and maintenance testing.
Recommended tools for use with the FEV100
Key features
• Check protective earth for correct wiring and functioning with the PE pre-test feature.
• Perform GFCI troubleshooting of EVSE and verify operation within safety standards.
• Test charging states of EVSE with CP state simulation.
• Verify charging voltage and maximum available current using a multimeter.
• SAE J1772 compliant to North American standards.
Electrical safety
EVSE charging cables may become damaged over the course of use, increasing electric shock risks to users. Stay protected from and check risk of electric shock with the GFCI trip test. This function verifies the breaker of the EVSE is connected by detecting ground faults. Additionally, the PE grounding protection pre-test verifies that there is no presence of dangerous voltage at the ground terminal.
Simplicity and convenience
Perform a variety of tests including ground fault checks, insulation of wires, measuring voltage and duty cycle to see max current available for charging all in one adapter that safely integrates with the Fluke portfolio of test and measurement tools. There is no need to bring an electric vehicle onsite for EVSE troubleshooting: the adapter acts as an electric vehicle when connected to an EVSE for easy performance and maintenance testing.
Recommended tools for use with the FEV100
Key features
• Check protective earth for correct wiring and functioning with the PE pre-test feature.
• Perform GFCI troubleshooting of EVSE and verify operation within safety standards.
• Test charging states of EVSE with CP state simulation.
• Verify charging voltage and maximum available current using a multimeter.
• SAE J1772 compliant to North American standards.
• Measure AC voltage and current without touching a live wire
• Troubleshoot with all power supply measurements at-a-glance
• See AC voltage and current values without test leads
• Troubleshoot with all power supply measurements at-a-glance
• See AC voltage and current values without test leads
