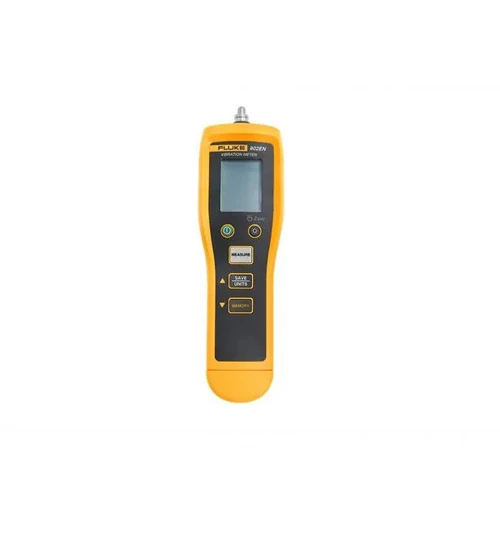

Fluke 802EN Vibration Meter
Fluke 802EN Vibration Meter
One-button vibration assessment of mechanical equipment
Key features
• Three test modes to meet complex test environment in industrial field
• High repeatability to ensure accuracy of continuous testing
• One-button measurement to get assessment result in 6 seconds
• 99 sets of data storage, review in real-time
One-button vibration assessment of mechanical equipment
Key features
• Three test modes to meet complex test environment in industrial field
• High repeatability to ensure accuracy of continuous testing
• One-button measurement to get assessment result in 6 seconds
• 99 sets of data storage, review in real-time
Download
Produk Lainnya
ROTALIGN touch EX is Zone 1 ATEX/IECEX certified. Packed with user-friendly alignment features unique to PRUFTECHNIK, the ROTALIGN touch EX shortens the measurement time with:
• Continuous SWEEP Mode for high-quality measurement in only one shaft rotation
• Live Move function for simultaneous real-time machine corrections in both horizontal and vertical directions
• vertiSWEEP to measure vertical machines in one rotation of the shaft
Cardan shaft rotating-arm bracket allows measurements to be performed without removing the shaft
• Soft Foot Wizard to diagnose soft foot problems
• Move Simulator lets the operator simulate shim values and horizontal corrections before moving the machine
• Continuous SWEEP Mode for high-quality measurement in only one shaft rotation
• Live Move function for simultaneous real-time machine corrections in both horizontal and vertical directions
• vertiSWEEP to measure vertical machines in one rotation of the shaft
Cardan shaft rotating-arm bracket allows measurements to be performed without removing the shaft
• Soft Foot Wizard to diagnose soft foot problems
• Move Simulator lets the operator simulate shim values and horizontal corrections before moving the machine
The VibXpert 3 Balancer is an advanced smart condition monitoring field balancing tool that enables users to quickly and effectively correct unbalance faults.
With the VibXpert 3 Balancer, users can:
• Increase the reliability of their machinery by reducing excessive machine vibration levels
• Improve safety by reducing potential equipment hazards
• Improve uptime by promptly identifying and correcting unbalance
• Help meet industry standards and regulatory compliance requirements
• Improve energy efficiency of rotating machinery, providing cost savings
• Maximize the efficiency, quality, and accuracy of field balancing jobs
The result is extended peak operating asset performance, more effective resource use, and increased business value from operations.
Unbalance, resulting from uneven mass distribution around a rotational axis is the leading cause of unplanned downtime and costly damage.
Today, machines operate at variable speeds, sometimes near their engineered capacity, increasing the risk of resonant vibration. Balanced machines mitigate this risk. The VibXpert 3 Balancer offers a highly efficient and user-centric experience, faster balancing results with better insights, and enhanced fault detection on rotating assets.
Machine templates
It boasts an interactive user interface with preconfigured and customizable machine templates, reducing the complexity of the balancing process.
Modern data processing
Its modern data processing capability, optimized software-based calculations from raw sensor data offers faster measurements, complete insights during balancing (including overall vibration levels, FFT spectra, phase, and time waveform).
6-channel measurements
VibXpert 3 Balancer enhances fault detection through synchronous 6-channel measurement, enabling users to minimize overall vibration levels simultaneously across all machine measurement points
Enhanced balancing reports
Balancing reports encompassing all necessary information for users, including overall vibration levels, spectral graphs, polar plots, and machinery details, among others.
With the VibXpert 3 Balancer, users can:
• Increase the reliability of their machinery by reducing excessive machine vibration levels
• Improve safety by reducing potential equipment hazards
• Improve uptime by promptly identifying and correcting unbalance
• Help meet industry standards and regulatory compliance requirements
• Improve energy efficiency of rotating machinery, providing cost savings
• Maximize the efficiency, quality, and accuracy of field balancing jobs
The result is extended peak operating asset performance, more effective resource use, and increased business value from operations.
Unbalance, resulting from uneven mass distribution around a rotational axis is the leading cause of unplanned downtime and costly damage.
Today, machines operate at variable speeds, sometimes near their engineered capacity, increasing the risk of resonant vibration. Balanced machines mitigate this risk. The VibXpert 3 Balancer offers a highly efficient and user-centric experience, faster balancing results with better insights, and enhanced fault detection on rotating assets.
Machine templates
It boasts an interactive user interface with preconfigured and customizable machine templates, reducing the complexity of the balancing process.
Modern data processing
Its modern data processing capability, optimized software-based calculations from raw sensor data offers faster measurements, complete insights during balancing (including overall vibration levels, FFT spectra, phase, and time waveform).
6-channel measurements
VibXpert 3 Balancer enhances fault detection through synchronous 6-channel measurement, enabling users to minimize overall vibration levels simultaneously across all machine measurement points
Enhanced balancing reports
Balancing reports encompassing all necessary information for users, including overall vibration levels, spectral graphs, polar plots, and machinery details, among others.
PRUFTECHNIK not only supplies premium alignment systems for aligning machines and shafts, but also the right induction heating tools for mounting bearings on shafts. The benefits of induction heating include safety, efficiency, and overall energy savings.
EDDYTHERM Portable can be used for all bearings and work pieces with an inner diameter of min. 20 mm (0.78 inches) and a weight of up to 10 kg (22 lbs). The maximum induction heat is 180°C (356°F), protecting your bearings against overheating and damage. The workpiece is placed onto the cone shaped heating surface. The integrated time and temperature regulation capability ensures that the workpiece is heated evenly with no risk of overheating.
How does induction heating work? In just a few minutes, the bearings are preheated by induction so that that they expand and glide effortlessly onto the shaft. When the bearing cools down, it assumes its original size and thus guarantees the desired tight fit on the shaft. Due to the induction heat, all tolerances and material properties are maintained without loss. No further work steps are necessary. EDDYTHERM Portable is a safe induction heating tool that only heats the work piece, not the tool itself.
EDDYTHERM Portable can be used for all bearings and work pieces with an inner diameter of min. 20 mm (0.78 inches) and a weight of up to 10 kg (22 lbs). The maximum induction heat is 180°C (356°F), protecting your bearings against overheating and damage. The workpiece is placed onto the cone shaped heating surface. The integrated time and temperature regulation capability ensures that the workpiece is heated evenly with no risk of overheating.
How does induction heating work? In just a few minutes, the bearings are preheated by induction so that that they expand and glide effortlessly onto the shaft. When the bearing cools down, it assumes its original size and thus guarantees the desired tight fit on the shaft. Due to the induction heat, all tolerances and material properties are maintained without loss. No further work steps are necessary. EDDYTHERM Portable is a safe induction heating tool that only heats the work piece, not the tool itself.
Precision laser alignment made easy
The rugged Fluke 831 has an intuitive guided user interface that enables quick and complete shaft alignment without advanced training or complicated programs. And while it’s easy to use, laser alignment with the Fluke 831 is powerful enough for the skilled technician. You can cover more of your machines with all the functionality needed on the plant floor, from thermal growth to user defined tolerances and more.
Reduce costs by avoiding downtime
Misalignment causes at least half of all damage to rotating machinery, studies show. Instead of fixing the problem, teams often just treat the symptoms of misalignment and replace bearings, couplings, and seals because they think alignment takes too long.
Contrary to expectations, laser alignment can be fast and easy. So, every machine that is repaired and overhauled should be aligned – not just a few. Teams that embrace laser alignment can save thousands of dollars per year by avoiding downtime and energy waste and reducing the number of bearings and seals they have to replace.
Key features
• Fast, easy, and precise alignment that adapts to your needs.
• Rugged build and the highest-in-class IP rating.
• Single-laser technology for the fastest, most accurate laser alignment.
• Cloud connection enables real-time collaboration.
• Use up to 8 measurement points to achieve precision alignment on vertical machines.
The rugged Fluke 831 has an intuitive guided user interface that enables quick and complete shaft alignment without advanced training or complicated programs. And while it’s easy to use, laser alignment with the Fluke 831 is powerful enough for the skilled technician. You can cover more of your machines with all the functionality needed on the plant floor, from thermal growth to user defined tolerances and more.
Reduce costs by avoiding downtime
Misalignment causes at least half of all damage to rotating machinery, studies show. Instead of fixing the problem, teams often just treat the symptoms of misalignment and replace bearings, couplings, and seals because they think alignment takes too long.
Contrary to expectations, laser alignment can be fast and easy. So, every machine that is repaired and overhauled should be aligned – not just a few. Teams that embrace laser alignment can save thousands of dollars per year by avoiding downtime and energy waste and reducing the number of bearings and seals they have to replace.
Key features
• Fast, easy, and precise alignment that adapts to your needs.
• Rugged build and the highest-in-class IP rating.
• Single-laser technology for the fastest, most accurate laser alignment.
• Cloud connection enables real-time collaboration.
• Use up to 8 measurement points to achieve precision alignment on vertical machines.
