EDDYTHERM Portable
PRUFTECHNIK not only supplies premium alignment systems for aligning machines and shafts, but also the right induction heating tools for mounting bearings on shafts. The benefits of induction heating include safety, efficiency, and overall energy savings.

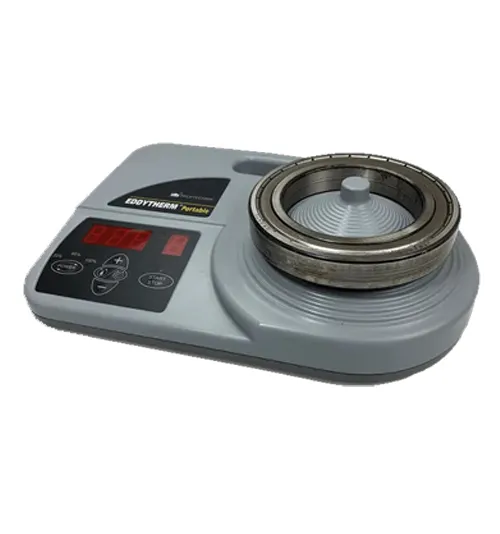

EDDYTHERM Portable can be used for all bearings and work pieces with an inner diameter of min. 20 mm (0.78 inches) and a weight of up to 10 kg (22 lbs). The maximum induction heat is 180°C (356°F), protecting your bearings against overheating and damage. The workpiece is placed onto the cone shaped heating surface. The integrated time and temperature regulation capability ensures that the workpiece is heated evenly with no risk of overheating.
How does induction heating work? In just a few minutes, the bearings are preheated by induction so that that they expand and glide effortlessly onto the shaft. When the bearing cools down, it assumes its original size and thus guarantees the desired tight fit on the shaft. Due to the induction heat, all tolerances and material properties are maintained without loss. No further work steps are necessary. EDDYTHERM Portable is a safe induction heating tool that only heats the work piece, not the tool itself.
EDDYTHERM Portable can be used for all bearings and work pieces with an inner diameter of min. 20 mm (0.78 inches) and a weight of up to 10 kg (22 lbs). The maximum induction heat is 180°C (356°F), protecting your bearings against overheating and damage. The workpiece is placed onto the cone shaped heating surface. The integrated time and temperature regulation capability ensures that the workpiece is heated evenly with no risk of overheating.
How does induction heating work? In just a few minutes, the bearings are preheated by induction so that that they expand and glide effortlessly onto the shaft. When the bearing cools down, it assumes its original size and thus guarantees the desired tight fit on the shaft. Due to the induction heat, all tolerances and material properties are maintained without loss. No further work steps are necessary. EDDYTHERM Portable is a safe induction heating tool that only heats the work piece, not the tool itself.
Download
Produk Lainnya
RotAlign Touch is the flagship laser alignment tool from Prüftechnik, a complete system that delivers maximum value and ROI for your alignment work.
• Superior single-laser technology eliminates pre-alignment & simplifies short-distance measurements
• NEW: Modular Platform allows your software & sensor package to evolve with you
• Automatically filter out bad data, from backlash to vibrations
• Readjust mid-measurement when out of range
• Advanced alignment tasks: In-Situ Cardan shaft, simultaneous coupling alignment, thermal growth, and more
• Superior single-laser technology eliminates pre-alignment & simplifies short-distance measurements
• NEW: Modular Platform allows your software & sensor package to evolve with you
• Automatically filter out bad data, from backlash to vibrations
• Readjust mid-measurement when out of range
• Advanced alignment tasks: In-Situ Cardan shaft, simultaneous coupling alignment, thermal growth, and more
A unique handheld measuring device with which even untrained personnel can easily and effectively measure machine vibration on rotating machinery. Thanks to its forward-looking measuring principle and data acquisition across three axes with the triaxial sensor, all relevant condition information is recorded with the touch of a single button. And at a measurement speed that opens up fully new dimensions. Not only is the VIBSCANNER 2 a breakthrough in terms of measurement speed and precision, but also through its robustness and its intuitive operating concept.
Depending on the filter settings, it measures overall values, spectra, and time signals synchronously in 3 axes. In combination with a triaxial sensor, VIBSCANNER 2 collects even more machine condition data per measurement location.
• Added value thanks to additional vibration data without affecting the measurement time
• Quick data acquisition thanks to synchronous measurement in 3 axes
• Clear channel assignment without any additional cable adapter
A triaxial sensor measures vibration in 3 perpendicular directions at once, while a single-axis sensoronly measures in one direction at a time. Certain conditions such as cocked bearing or a bent shaft can be identified in a single measurement with a triaxial sensor.
The bottom line: In combination with a triaxial sensor, VIBSCANNER 2 delivers even more comprehensive information per measurement location at the push of a button. This creates an overall image of the machine‘s health without affecting the measuring time.
Depending on the filter settings, it measures overall values, spectra, and time signals synchronously in 3 axes. In combination with a triaxial sensor, VIBSCANNER 2 collects even more machine condition data per measurement location.
• Added value thanks to additional vibration data without affecting the measurement time
• Quick data acquisition thanks to synchronous measurement in 3 axes
• Clear channel assignment without any additional cable adapter
A triaxial sensor measures vibration in 3 perpendicular directions at once, while a single-axis sensoronly measures in one direction at a time. Certain conditions such as cocked bearing or a bent shaft can be identified in a single measurement with a triaxial sensor.
The bottom line: In combination with a triaxial sensor, VIBSCANNER 2 delivers even more comprehensive information per measurement location at the push of a button. This creates an overall image of the machine‘s health without affecting the measuring time.
VIBGUARD compact offers six measuring channels for continuous monitoring. It is perfectly suited for fast and highly dynamic equipment. In particular, the VIBGUARD compact meets the requirements of critical assets that are characterized by high availability, high aggregate values, complex drives and changing operating conditions.
Whether pre-installed in an IP65 compact housing or as a switch cabinet system module, the VIBGUARD compact is perfect for diagnostic condition monitoring of individual extruders, large fans, multiphase or vacuum pumps, turbocompressors, mill stands, or centrifuges.
All six measuring channels are designed as highly dynamic analog input channels and can be equipped with either standard ICP vibration sensors or with voltage input signals for process variables. They provide in depth diagnostic data such as time signals or envelope signals, and up to 6 characteristic values such as vibration characteristic or bearing condition.
The ‘Intelligent Event Recorder’ stores relevant results, fully automatically and continuously, providing the basis for comprehensive machine diagnostics. Its MQTT protocol enables the seamless integration to any IIoT manufacturing environment with highly secure data transfer
Whether pre-installed in an IP65 compact housing or as a switch cabinet system module, the VIBGUARD compact is perfect for diagnostic condition monitoring of individual extruders, large fans, multiphase or vacuum pumps, turbocompressors, mill stands, or centrifuges.
All six measuring channels are designed as highly dynamic analog input channels and can be equipped with either standard ICP vibration sensors or with voltage input signals for process variables. They provide in depth diagnostic data such as time signals or envelope signals, and up to 6 characteristic values such as vibration characteristic or bearing condition.
The ‘Intelligent Event Recorder’ stores relevant results, fully automatically and continuously, providing the basis for comprehensive machine diagnostics. Its MQTT protocol enables the seamless integration to any IIoT manufacturing environment with highly secure data transfer
• On-board identification and location of the most common mechanical faults (bearings, misalignment, unbalance, looseness) focus maintenance efforts on root cause, reducing unplanned downtime
• Overall vibration level allows you to quickly assess overall machine health directly from the diagnosis screen
• Fault severity scale with four severity levels helps you prioritize maintenance work
• Repair recommendations advise technicians on corrective action
• Detailed diagnostic reports and spectral diagrams help confirm data quality, and narrow down the root cause of failures
• On-board context sensitive help provides real-time tips and guidance to new users
• Overall vibration level allows you to quickly assess overall machine health directly from the diagnosis screen
• Fault severity scale with four severity levels helps you prioritize maintenance work
• Repair recommendations advise technicians on corrective action
• Detailed diagnostic reports and spectral diagrams help confirm data quality, and narrow down the root cause of failures
• On-board context sensitive help provides real-time tips and guidance to new users
