When it's not just infrared.

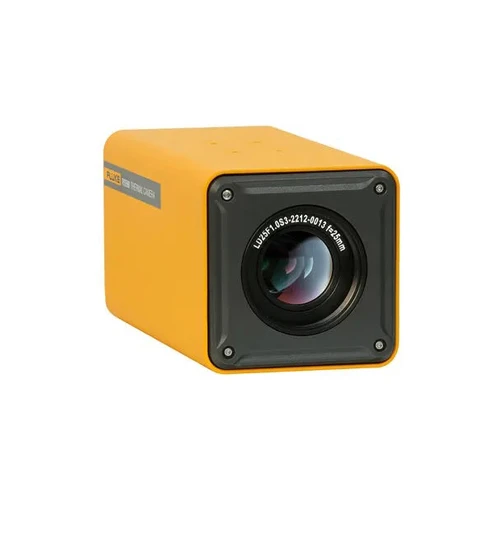

Introducing Fluke infrared cameras, the first with full radiometry technology – the RSE series. Packed with advanced features and plug-in software for MATLAB® and LabVIEW® , these tools are ideal for continuous streaming and analysis of infrared data.

Designed for your research, science and engineering needs, enhance your testing and quality assurance procedures by attaching the RSE600 to your workstation. Continuously stream up to 60 frames per second of data directly to your computer to monitor minute temperature differences, as well as analyze remote video frame-by-frame from the SmartView® desktop software . Get an even more perfect screen with add-on lenses to target different applications (analyzing from a distance, or getting detailed close-ups).

Don't just look at the heat. Stream, measure and analyze its power as well.

With plug-ins for MATLAB® and LabVIEW® , the RSE Infrared Camera is perfect for testing and development. Looking for more robust software to monitor and archive processing manufacturing data 24/7? We recommend the ThermoView® series from Fluke Process Instruments. Check out a quick comparison

Be proactive, not reactive

Plan your proactive maintenance (PM) program and make it a reality. To get started, you need a feature that makes it easy for you to organize your pictures and inspection routines. With the TiS75+ you are ready to implement a successful PM program.
- Asset Tagging allows you to easily compare asset images over time.
- Scanning the QR code on each asset creates a timeline of your inspections.
- Use saved time (25% on average spent setting up thermal images) to analyze asset images to see trends, diagnose problems and fix problems before they become failures.

Choose TiS75+

These new Fluke thermal cameras stay true to our mantra of giving customers more than they pay for. The Fluke TiS75+ offers features to help you tackle almost anything you'll encounter in the field. In addition to the features mentioned above, the TiS75+ also includes the ability to:
- IS3 and AVI video recording
- Streaming data
- 384 x 288 thermal resolution
- High temperature range—up to 550 °C
- Dew point calculation

Memperkenalkan kamera infrared Fluke, pertama kali dengan teknologi radiometri utuh – seri RSE. Dilengkapi dengan fitur canggih dan plug-in software untuk MATLAB® dan LabVIEW® , alat-alat ini sangat ideal untuk streaming tanpa henti dan analusus data infrared.
Dirancang untuk kebutuhan riset, sains, dan teknik rekayasa Anda, sempurnakan prosedur pengujian dan jaminan kualitas dengan memasang RSE300 ke stasiun kerja Anda. Lakukan streaming berkelanjutan hingga 60 frame data per detik secara langsung ke komputer Anda untuk memantau perbedaan suhu setiap menitnya, serta menganalisis video frame-demi-frame jarak jauh dari software desktop SmartView® . Dapatkan layar yang semakin sempurna dengan lensa add-on untuk menargetkan beragam aplikasi (menganalisis dari jarak tertentu, atau mendapatkan detail close-up).

Jangan hanya lihat panasnya. Lakukan streaming, pengukuran, dan analisis dayanya juga.

Dengan plug-in untuk MATLAB® dan LabVIEW® , Kamera Infrared RSE sangat cocok untuk pengujian dan pengembangan. Anda mencari software yang lebih tangguh untuk memantau dan mengarsipkan data pabrikasi pemrosesan 24/7? Kami merekomendasikan seri ThermoView® dari Fluke Process Instruments. Lihat perbandingan cepat

Fitur utama
• Kompatibilitas software MATLAB® dan LabVIEW® memungkinkan pengguna mengintegrasikan data, gambar, dan video infrared untuk mendukung analisis R&D;
• Resolusi 320 x 240
• Lihat detail yang Anda perlukan dengan lensa cerdas opsional – telephoto 2x dan 4x, sudut lebar, dan lensa makro
• Optimalkan gambar, buat laporan yang bisa disesuaikan dengan kebutuhan, dan ekspor gambar ke format pilihan Anda dengan software desktop SmartView®
• Hubungkan kamera Anda dengan sistem Fluke Connect® secara nirkabel untuk membagikan dan mengedit gambar dengan mudah

Experience fast and easy inspections on the go with Fluke iSee™ Mobile Thermal Camera, weighing just 22g. It takes only a second to start using. The wide temperature measurement range, up to 550°C (1022°F), makes it suitable for various applications, including inspecting electrical cabinets, identifying HVAC issues, and installing underfloor heating. Fluke iSee boasts professional-grade image quality, comparable to high-end thermal cameras, with a 256 x 192 pixel thermal resolution and smooth video recording at a 25 Hz frame rate. Additionally, our software offers comprehensive spot, line, and area temperature analysis for precise diagnostics.

Detailed image quality comparable to professional thermal imagers
• 256 x 192 pixels, detailed image quality
• -10 to 550 °C (14 to 1022 °F) range, covering wide applications
• 50 mk (0.05 °C) thermal sensitivity for fine screening
• ± 2% or ± 2 °C (3.6 °F) accuracy, reliable and stable
• 25 Hz frame rate, smooth video without lag
• More than 10 standard and custom color palettes to achieve a variety of personalized images
Full temperature range analysis
• Real-time high and low-temperature capture, without missing any details
• Adjustable emissivity to cope with different materials
• Comprehensive temperature analysis for spot, line and area, professional-grade thermal imaging software
• Real-time temperature alarm, timely response, and handling
• Unattended automatic time-lapse photography
• Infrared and visible light image comparison for locating, comparing, and archiving
Real-time image sharing, communication without barriers
• Real-time image and video sharing and management, fast and efficient communication
• It is easy to add image annotations, and communication without barriers
Small and portable, it takes a second to get started
• Compact design as light as 22 g (0.78 oz), perfect for your mobile phone size
• The iSeeTM is made of high-quality aluminum material for the airway, with uniquely treated and laser-etched surface
• Up to 1-meter drop test, IP56 (TC01B/TC01C)/IP54 (TC01A) ingress protection for Fluke durability
• Optimized Fluke iSeeTM application interfaces and menus with professional operating experience make it easy to access all functions
• The TC01B features a Lightning interface, while the TC01C has a Type-C interface. Both devices are compatible with iPhone and iPad*, fully supporting iOS and have obtained Apple MFI Certification.

Key features
• 256 x 192 pixels, detailed image quality, and 25 Hz frame rate for smooth video recording
• Up to 550 °C (1022°F), suitable to use in many applications
• 50 mK (0.05 °C) thermal sensitivity for fine differences and ± 2% or ±2 °C accuracy to ensure reliable results
• Customize image view with more than 10 standard or custom color palettes
• Compact design as light as 22 g
