Digital multimeter

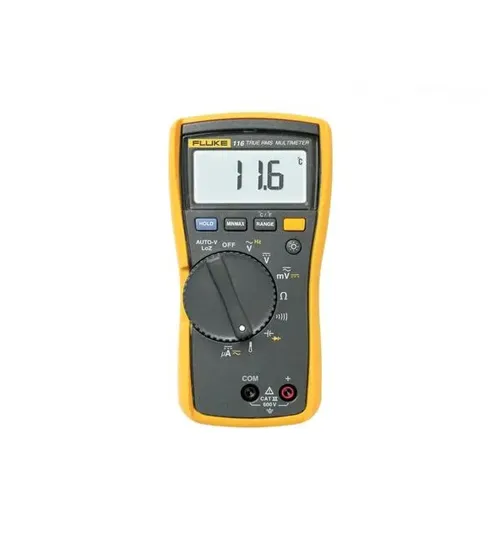

Fluke 116 Digital HVAC Multimeter
The Fluke 116 Digital HVAC Multimeter provides the features you need to quickly troubleshoot HVAC equipment
The Fluke 116 Digital HVAC Multimeter was specifically designed for HVAC professionals. It has everything you need to quickly troubleshoot problems with HVAC equipment and flame sensors, including a built-in thermometer to measure temperatures up to 400°C (752°F) and microamps to test flame sensors. The Fluke 116 also measures resistance, continuity, frequency, and capacitance. And the large white LED backlight makes it easy to see results even in poorly lit areas.
Fluke 116 Digital HVAC Multimeters are independently tested for safe use in CAT III 600 V environments.
Other Useful Features of the Best HVAC Multimeter: Fluke 116
• Measures resistance, continuity, frequency, and capacitance
• Provides Min/Max/Average to record signal fluctuations
• Comes with a holster with probe holders for easy storage
• Features a compact ergonomic design for one-handed operation
• Fits into optional ToolPak™ magnetic hanger for hands-free operation
• CAT III 600 V safety rated
Key features
• Digital multimeter designed specifically for HVAC professionals
• Includes built-in thermometer to measure temperature from -40°C to 400°C (-40°F to 752°F)
• Provides microamps to test flame sensors
• Features low input impedance to helps prevent false readings due to ghost voltage
• Presents a large white LED backlight for working in poorly lit areas
The Fluke 116 Digital HVAC Multimeter was specifically designed for HVAC professionals. It has everything you need to quickly troubleshoot problems with HVAC equipment and flame sensors, including a built-in thermometer to measure temperatures up to 400°C (752°F) and microamps to test flame sensors. The Fluke 116 also measures resistance, continuity, frequency, and capacitance. And the large white LED backlight makes it easy to see results even in poorly lit areas.
Fluke 116 Digital HVAC Multimeters are independently tested for safe use in CAT III 600 V environments.
Other Useful Features of the Best HVAC Multimeter: Fluke 116
• Measures resistance, continuity, frequency, and capacitance
• Provides Min/Max/Average to record signal fluctuations
• Comes with a holster with probe holders for easy storage
• Features a compact ergonomic design for one-handed operation
• Fits into optional ToolPak™ magnetic hanger for hands-free operation
• CAT III 600 V safety rated
Key features
• Digital multimeter designed specifically for HVAC professionals
• Includes built-in thermometer to measure temperature from -40°C to 400°C (-40°F to 752°F)
• Provides microamps to test flame sensors
• Features low input impedance to helps prevent false readings due to ghost voltage
• Presents a large white LED backlight for working in poorly lit areas
Download
Produk Lainnya
The Fluke 50 Series II contact thermometer offers fast response and laboratory accuracy (0.05% + 0.3°C) in a rugged hand test kit.
The three models of the new 170 Series are the new benchmark for common multimeters. All three set the standard with their combination of precision, features, ease of use, safety and reliability
The Fluke 88V meter has measurement functions, troubleshooting features, and accuracy levels needed to solve problems on conventional and hybrid vehicles. The 88V is the most powerful automotive multimeter ever offered by Fluke. In addition to standard multimeter features such as the ability to measure voltage, current, continuity, and resistance, the 88V can perform:
Pulse width
Duty cycle
Min/Max/Average recording
Diode tests
The pulse width function provides millisecond resolution for troubleshooting fuel injectors.
Automotive measurements
The 88V meter can take care of many automotive needs, getting into more of the digital multimeters measurement capabilities - it can measure voltage up to 1000 V AC and DC, current up to 10 A, 20 A for up to 30 seconds and frequency to 200 kHz and % duty cycle. Add those features to RPM measurements with optional inductive pickup and millisecond pulse width measurements for fuel injectors to name a few. The 88V comes packed with the functions you need:
Temperature measurements with optional temperature probe
Analog bar graph to track changing or unstable signals
Min/Max/Average recording with Min/Max Alert to capture variations automatically
Peak Min/Max to record transients as fast as 250 μs
88V multimeter designed for the garage
While working in a garage, the large display digits can help you focus on the vehicle while still being able to read the numbers. Plus, the two-level bright white backlight offers the additional visibility you may need.
Pulse width
Duty cycle
Min/Max/Average recording
Diode tests
The pulse width function provides millisecond resolution for troubleshooting fuel injectors.
Automotive measurements
The 88V meter can take care of many automotive needs, getting into more of the digital multimeters measurement capabilities - it can measure voltage up to 1000 V AC and DC, current up to 10 A, 20 A for up to 30 seconds and frequency to 200 kHz and % duty cycle. Add those features to RPM measurements with optional inductive pickup and millisecond pulse width measurements for fuel injectors to name a few. The 88V comes packed with the functions you need:
Temperature measurements with optional temperature probe
Analog bar graph to track changing or unstable signals
Min/Max/Average recording with Min/Max Alert to capture variations automatically
Peak Min/Max to record transients as fast as 250 μs
88V multimeter designed for the garage
While working in a garage, the large display digits can help you focus on the vehicle while still being able to read the numbers. Plus, the two-level bright white backlight offers the additional visibility you may need.
The Fluke 113 Digital Multimeter gives users the means to quickly and easily do basic testing. It is easy to use and is packed with the features needed to repair most electrical problems. The 113 features a large, backlit display for easy visibility in low-lit work environments. Plus, the integrated holster includes probe holders on the back, so your test leads can always be kept organized and where you need them.
Make measurements quickly with the 113
Whether you’re a utility worker, linesman, electrician, technician, anyone else working with basic electrical testing, the Fluke 113 includes the measurement features you need to tackle your job. The Fluke VCHEK™ LoZ low impedance measurement function lets users perform tests for voltage or continuity from the same dial position.
Please note that low impedance LoZ measurements will cause a low load on a circuit protected by a RCD, which will trip powered GFCI and RCD circuits when measuring Phase to Earth.
The meter also displays AC or DC voltage, depending on what was detected, while also rejecting ghost voltages from adjacent wires. If no voltage is detected, a continuity test is performed. The Min/Max function lets you record signal fluctuations.
The Fluke 113 digital multimeter can perform diode tests, and also provides both auto and manual ranging capabilities. With features such as conformance to the latest safety standards, backlight, and a much larger display that’s easier to view, this meter is a must have for every toolbox.
Key Features
• VCHEK™ LoZ low impedance measurement function to test for either AC or DC voltage, or show continuity if voltage is not detected.
• Large backlit display
• CAT IV 600 V safety rated
Make measurements quickly with the 113
Whether you’re a utility worker, linesman, electrician, technician, anyone else working with basic electrical testing, the Fluke 113 includes the measurement features you need to tackle your job. The Fluke VCHEK™ LoZ low impedance measurement function lets users perform tests for voltage or continuity from the same dial position.
Please note that low impedance LoZ measurements will cause a low load on a circuit protected by a RCD, which will trip powered GFCI and RCD circuits when measuring Phase to Earth.
The meter also displays AC or DC voltage, depending on what was detected, while also rejecting ghost voltages from adjacent wires. If no voltage is detected, a continuity test is performed. The Min/Max function lets you record signal fluctuations.
The Fluke 113 digital multimeter can perform diode tests, and also provides both auto and manual ranging capabilities. With features such as conformance to the latest safety standards, backlight, and a much larger display that’s easier to view, this meter is a must have for every toolbox.
Key Features
• VCHEK™ LoZ low impedance measurement function to test for either AC or DC voltage, or show continuity if voltage is not detected.
• Large backlit display
• CAT IV 600 V safety rated
