Power Quality

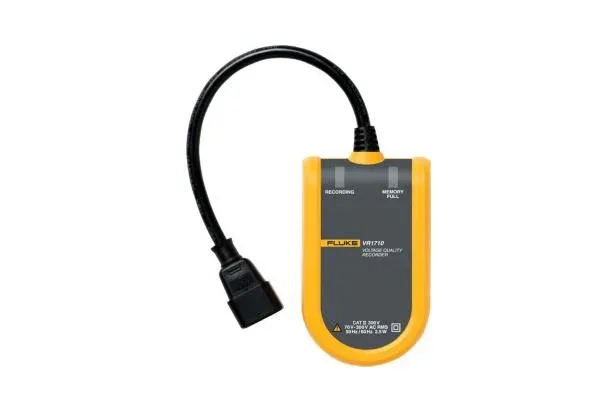

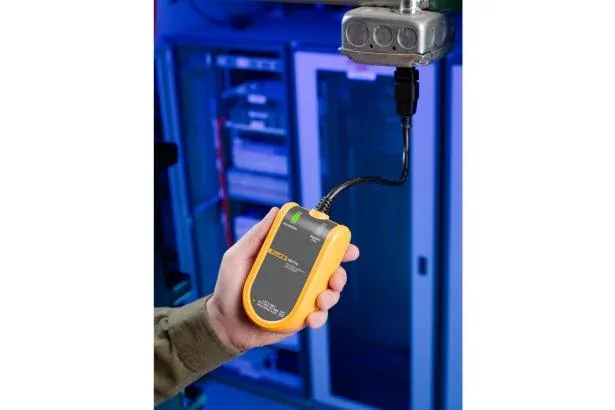

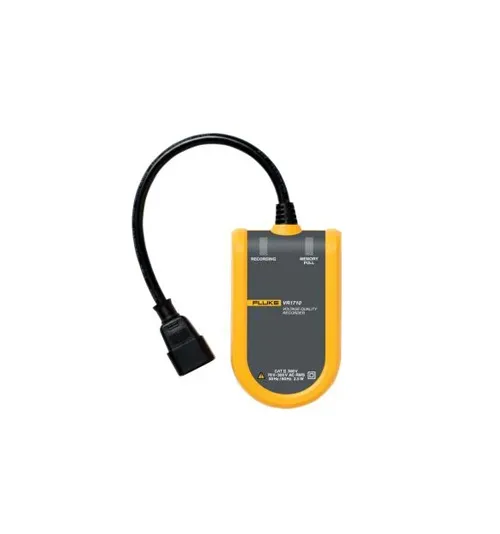

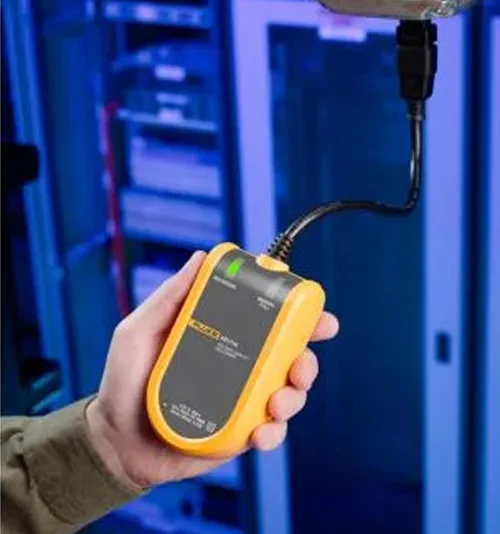

Fluke VR1710 Single Phase Voltage Quality Recorder

The Fluke VR1710 Power Quality Recorder, is a single-phase plug-in voltage quality recorder that offers an extremely easy-to-use solution for detecting and recording power quality problems, enabling immediate action and minimizing downtime. The VR1710 single-phase recorder meets the needs of maintenance and facilities management personnel in large service, utility, and industrial service organizations where power quality is critical to their business operations. Power quality parameters include average RMS, transients, flicker, and harmonics up to the 32nd recorded using a user-selectable averaging period from 1 second to 20 minutes.
Download
Produk Lainnya
Fluke 1760TR ThreePhase Power Quality Recorder
Fluke 1760TR Three-Phase Power Quality Recorder
The Fluke 1760 Three-Phase Power Quality Recorder complies strictly with IEC 61000-4-30 Class-A, for advanced power quality analysis and consistent conformity testing. Designed for the analysis of utility and industrial power distribution systems, in medium and low voltage networks, these power quality monitors give customers the flexibility to customize threshold selection, algorithms and measurements. The Fluke 1760 power recorder records the most thorough detail for user-selected parameters.

Usage

Detailed fault analysis – Performs high-speed transient analysis and finds root causes of equipment malfunctions for later mitigation of malfunctions and predictive maintenance. The fast transient option, with a measuring range of 6,000 V, makes it possible to record very short impulses such as lightning strikes.

Class-A Quality of Service Compliance – Validates the quality of incoming power at the service gateway. Thanks to Class A conformance, the Fluke 1760 allows unquestioned verification.

Correlation of events at multiple locations – Using GPS time synchronization, users can quickly detect where a fault first occurred, both inside and outside the facility.

Galvanic separation and DC coupling – Allows complete measurement of dissimilar power systems. For example, troubleshooting a UPS system by simultaneously recording battery voltage and power output.

Power quality and power load monitoring – Assess baseline power quality to validate compatibility with critical systems prior to installation and verify electrical system capacity before increasing loads.
Fluke 1738INTL Network diagnostics 3phase Data logger Clamp meter
Fluke 1738/INTL Network diagnostics 3-phase Data logger, Clamp meter
The three-phase power logger with the mobile app and desktop software Fluke Connect® is compatible, offers you the data you need to make informed decisions for the optimisation of power quality and energy consumption. As the ideal measuring instrument for energy studies and basic power quality logging records and logs the Power Logger automatically supply quality parameters, so that you get more insight into the data and both the reliability of the system as well as the savings can optimize.

This text is machine translated.

Highlights & Details
- Includes 4 Flex clamp-on ammeter
- This text is machine translated.

Facts
- Automatic Capture and logging of over 500 power supply quality parameters
- Via Fluke Connect® users may the recorded data can be displayed either on site or remotely
- Direct supply of the logger via the measured line and the intelligent review feature reduces the measuring errors significantly
- Software Fluke Energy Analysis Plus enables the measurement results to capture, display, identify problems and detailed reports
- Load studies.
- Energy assessments
- Harmonic measurements
- Recording of voltage events
- Recording of voltage events
- Extended analysis according to EN50160 and waveform snapshots
- Optional IEEE 519 distortion factor measurements.

Delivery
- 1 x PSU
- 1x voltage measuring leads
- 4x alligator clips
- 4x flexible current probes (30 cm, 1500A)
- 1x Carrying Case
- 1 x energy analysis software
- 1x power cord
- 1 x color coding set
- Documentation on USB flash drive
- 1 x magnetic suspension belt
- 4 x magnetic voltage measuring tips.
Fluke 1777  ThreePhase Power Quality Analyzer
Fluke 1777 - Three-Phase Power Quality Analyzer
Automatic measurements. More flexibility. Better power quality troubleshooting.

Fluke 1770 Series Three-Phase Power Quality Analyzers eliminate the complexities of power quality logging, troubleshooting, and analysis. Engineered to be the faster, easier way to perform power quality studies, the 1770 Series offers automatic measurements, a straightforward user interface and setup, best-in-class specifications, and a simplified reporting platform. The instrument can also be powered directly from the measurement circuit, eliminating the need to find a power outlet or use a lengthy extension cord.

With the 1770 Series you’ll never miss a critical power quality event—from fast transients up to 8 kV, harmonics up to 30 kHz, dips and swells, as well as the voltage, current, and power measurements that enable you to characterize your electrical system.

Automatic measurement capture

Whether you’re performing a quick system check or a detailed power quality study, consistent data is key. The Fluke 1770 Series offers a unique automatic measurement capture system that helps ensure you’re collecting the right data every time, while still giving you the flexibility to select and adjust specific parameters as needed. More than 500 power quality parameters are captured by default and the guided setup makes it easy to select the right parameters for the system you’re working on. Logged data is instantly viewable, downloadable, and shareable with Fluke Energy Analyze Plus software so you never need to wait to finish a session before reviewing results or analyzing data.

Ultimate measurement confidence

The Fluke 1770 Series are 2-in-1 devices that combine the troubleshooting functionality of a power quality meter with the robust analysis and logging capabilities of a standalone power quality analyzer—in a single, easy-to-use, handheld device.

The ‘PQ Meter’ function gives you immediate access to live onscreen data in the field so you can quickly identify potential problems while troubleshooting. The detailed ‘PQ Logging and Analysis’ function eliminates the complexity of performing power quality studies by guiding you through the setup process ensuring you’re capturing the right data every time. Couple these measurement modes with a unique measurement connection autocorrect function and you can be confident that you never need to worry about going back for a second measurement—even if you were unsure about what to look for when you started.

Powerful analysis software with easy-to-create reports

Fluke 1770 Series Power Quality Analyzers come standard with the powerful Fluke Energy Analyze Plus software, designed to eliminate the hassles found with other multi-purpose application software. Energy Analyze Plus helps you evaluate power quality data right out of the box and without extensive training.

Energy Analyze Plus makes downloading, analyzing, tracking, and reporting power quality and energy data easier than ever. Quickly compare results to historical values, benchmark against industry norms, compare measured data to local conditions, and create a more complete picture of what’s occurring across your facility, even as the data is still being collected. Energy Analyze Plus offers unified support for the Fluke 1730, 1740, and 1770 Series of Energy Loggers and Power Quality Analyzers.

“In-workshop” and “in-the-field” setup and download through PC application software
Simple data downloads using USB memory stick, WiFi, LTE, wired Ethernet, or USB cable
Analyze every measured detail of energy consumption and power quality state-of-health with automated reporting

One-touch reporting creates standardized reports conforming to standards like EN 50160, IEEE 519, GOST 33073 IEC 61000-2-2, or export data in PQDIF or NeQual compatible format or CSV for use with third-party software

Advanced analysis allows the user to choose any available logged parameter and create a highly customized view of measurements for advanced data correlation

High-speed voltage transient capture

Transients negatively impact otherwise healthy systems every day and their potential to damage your equipment can’t be underestimated. Whether your system is experiencing impulsive or oscillatory transients, the results can be devastating and cause problems ranging from insulation failures to total equipment failures. The Fluke 1775 and Fluke 1777 incorporate advanced transient capture technology to help you clearly identify high-speed voltage transients, so you have the data you need to stop them in their tracks. The Fluke 1775 Power Quality Analyzer has 1MHz sampling capability to capture fast transients, while the Fluke 1777 Power Quality Analyzer has 20MHz sampling capability to capture the fastest transients in high detail.

Compliant to international standards

The Fluke 1770 Series offers the best-in-class accuracy you’ve come to expect from a Fluke Power Quality Analyzer in a future IEC 61000-4-30 Class A edition 3 compliant package. On top of that, the 1770 Series has been engineered to meet the future requirements of Class A edition, for conformance to EN 50160 and IEEE 519, so you’ll be prepared to tackle tomorrow’s measurement requirements, today.
Fluke VR1710 Single Phase Voltage Quality Recorder
Fluke VR1710 Single Phase Voltage Quality Recorder
The Fluke VR1710 Power Quality Recorder, is a single-phase plug-in voltage quality recorder that offers an extremely easy-to-use solution for detecting and recording power quality problems, enabling immediate action and minimizing downtime. The VR1710 single-phase recorder meets the needs of maintenance and facilities management personnel in large service, utility, and industrial service organizations where power quality is critical to their business operations. Power quality parameters include average RMS, transients, flicker, and harmonics up to the 32nd recorded using a user-selectable averaging period from 1 second to 20 minutes.
